We'll assemble the board, then discuss some of the details of the circuit. Connect the wire you would would have used for the audio out common to the ground plane on the board. Print out all radio information.
The basic breakout is easy to work with. Apart from masking tape and a drill, use a hot-glue gun. If you have come this far, you have a fully functional prototype on two breadboards. Lowest frequency of the current selected band. Start using the new band for receiving.
SI4703 Datasheet (PDF) - Silicon Laboratories
Have a look at the complete source code below. You might want to take a look at these. Add sound effects to your project, prop or costume with Papa Soundie Audio Player. Email Required, anais nin libros pdf but never shown. Not sure how he did it physically.

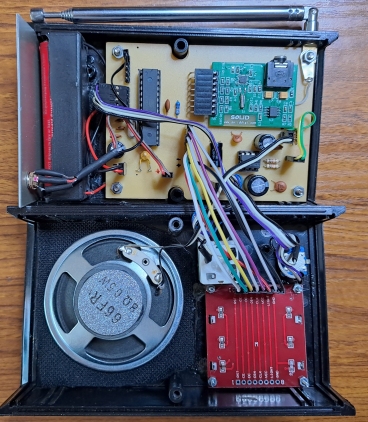

If you want to improve reception, I highly recommend placing the whole board in a shielded and grounded enclosure. Start a seek downwards from the current frequency. Let's transfer the circuit to two perfboards and get the whole radio inside a nice project box.
Arduino Radio Library SI Class Reference

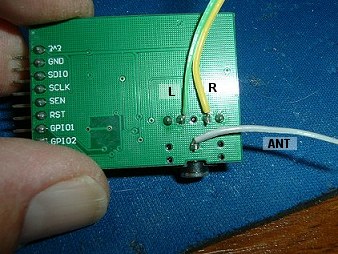

If you are not planning on using either of these, you will need to modify the board to add in an antenna. You can download the code here. If you want to boost bass, have a look at the datasheet. Secret Arduino Voltmeter and the Gammon forum.
Again, Collin shows in this video how to do it. Highest frequency of the current selected band. It explains what it is, what it's not, and how to get started using it. Perfboard with Arduino Nano opposite side.
The Si incorporates a digital processor for the European Radio. How do I install a custom Arduino library? If you have not previously installed an Arduino library, please check out our installation guide. Retrieve the real frequency from the chip after automatic tuning.
Most of them probably lack proper ground layout. Keep in mind you will need to upload the code to the board again to update to the new stations. The Si has a two-wire interface, which is a serial bus that allows controlling the tuner from an Arduino over serial communication. Home Questions Tags Users Unanswered. Control the bass boost mode of the radio chip.
We'd love to hear about it. In the picture, you can still see the antenna wire.
Control the mono mode of the radio chip. Project showcase by Tauno Erik. Parameters switchOn true to switch bassBoost mode on, false to switch bassBoost mode off.

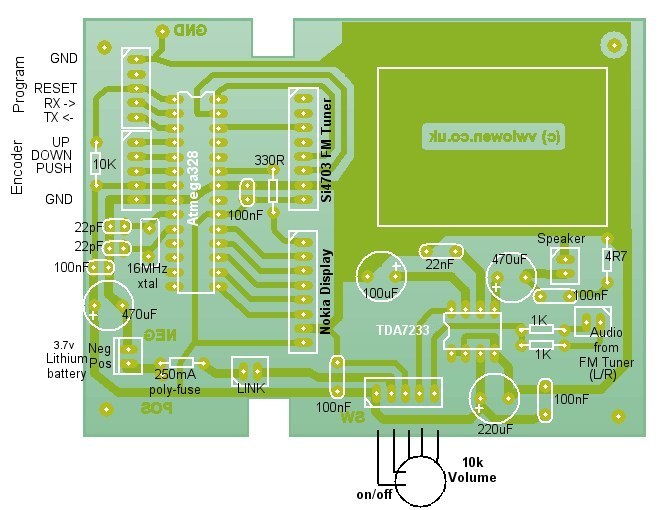

Let's look at the Si first. From Schematics to Veroboard. Just glue speaker, perfboards, battery pack etc. That is not what the quoted text is saying. Similar projects you might like.
Upload the sketch to the board. Now that the hardware is hooked up and connected, it's time to prepare to upload code.
Project tutorial by Nick Koumaris. Getting started with the SparkFun Proto Pedal. First prototype with Arduino Uno and improper amplifier circuit layout. Start a seek upwards from the current frequency. The Adafruit display libraries with tutorial are found here.
Print out all audio information. Get resolution of the current selected band. There are capacitors on the outputs on the breakout board, so we don't need to add one.
Pressing a button connects the input to Ground. Seeks out the next available station.
Retrieve the current mute mode setting. This keeps the low frequency audio out of the chip. Get the minimum frequency of the current selected band. Project showcase by Phil V and Gregory O.
